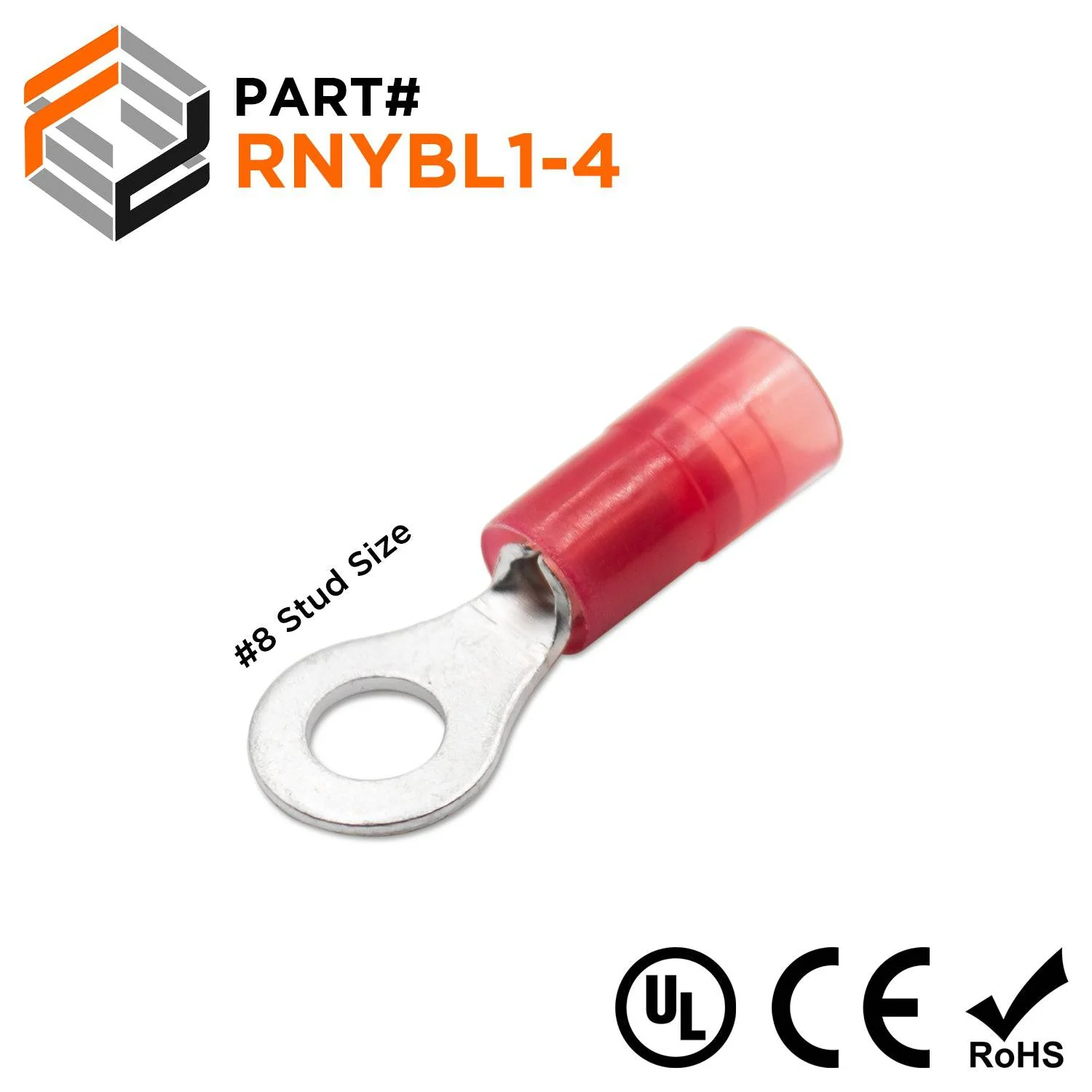

RNYBL1-4 - 22 to 16 AWG Nylon Insulated Ring Terminals, #8 Stud, 100 Pieces
NYLON INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Nylon Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #8 |
| Seam: | Brazed |
| Color: | Red |
| W: | 8mm (0.31") |
| F: | 7mm (0.27") |
| L: | 21.8mm (0.85") |
| E: | 11mm (0.43") |
| D | 4mm (0.15") |
| D1: | 1.7mm (0.06") |
| D2: | 4.3mm (0.16") |
| T: | 0.75mm (0.03") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
