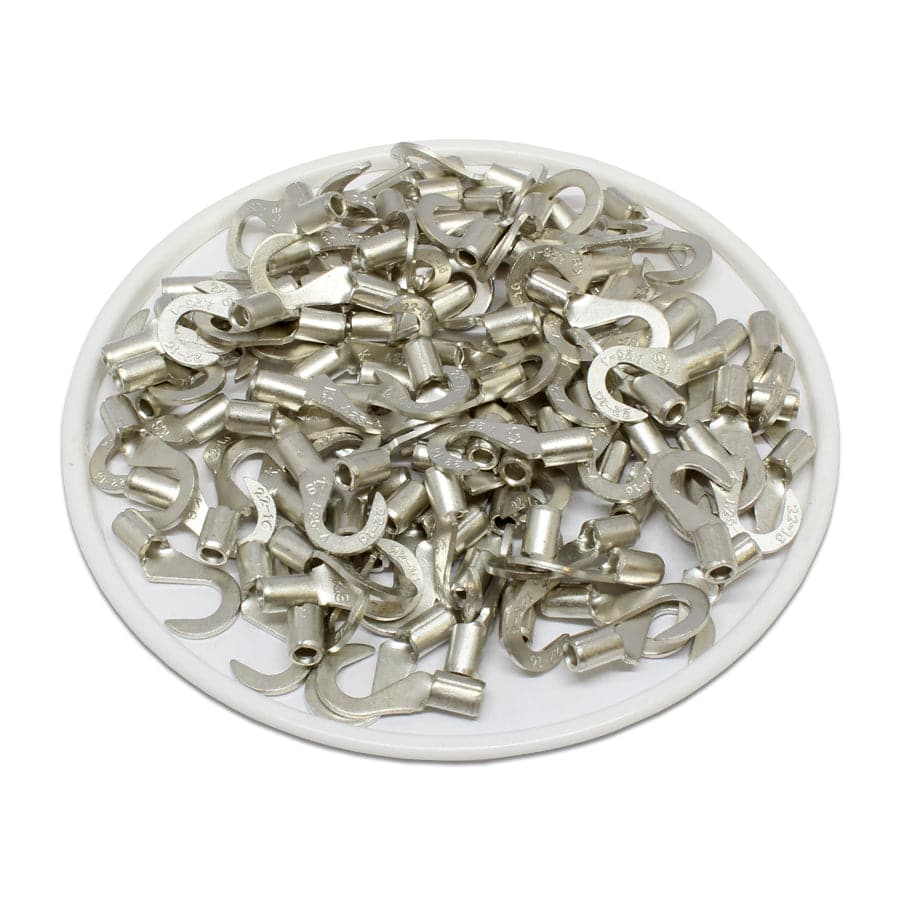

22-16 AWG Non Insulated Hook Terminals, #8 Stud, Brazed Seam, UL, - HNB1-4
NON INSULATED HOOK TERMINALS
Non insulated hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.
INFORMATION & SPECIFICATIONS:
| Wire Range: | 22-16 AWG |
| T: | 0.03" (0.75mm) |
| L: | 0.85" (15.8mm) |
| F: | 0.27" (7.0mm) |
| E: | 0.19" (4.8mm) |
| W: | 0.31" (8.0mm) |
| D: | 0.13" (3.4mm) |
| D1: | 0.07" (1.7mm) |
| D2: | 0.16" (4.3mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | #8 Stud |
| Seam: | Brazed |
| Temperature Rating: | 105oC - 600 Volts |
| AMP Rating: | 9-17AMP |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
Videos
Click below to check out our YouTube channel!
$9.06
