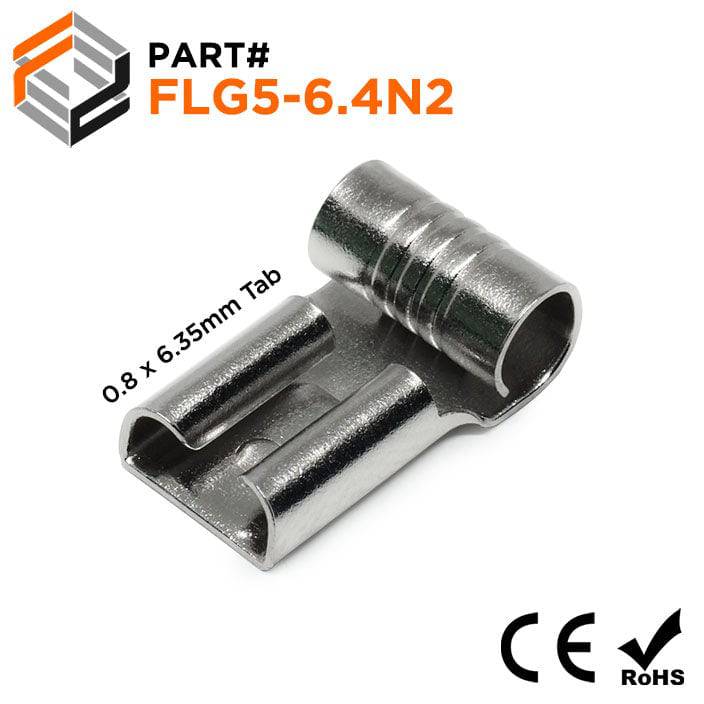

FLG5-6.4N2 - 12 to 10 AWG High Temperature Female Flag Quick Disconnects, Steel, 900°F, 100 Pieces
Non insulated flag quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
| Wire Size: | 12 to 10 AWG |
| L: | 14.8mm (0.583") |
| F: | 8.5mm (0.33") |
| W: | 7.4mm (0.291") |
| D: | 9.0mm (0.354) |
| D1: | 4.0mm (0.157") |
| D2: | 4.8mm (0.189") |
| Nema Tab: | 0.8 x 6.35mm (0.03 x 0.25") |
| Max Temperature: | 900 °F (482 °C) |
| Terminal Material: | Nickel Plated Steel |
| Max Electrical Rating: | 24 AMP |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
