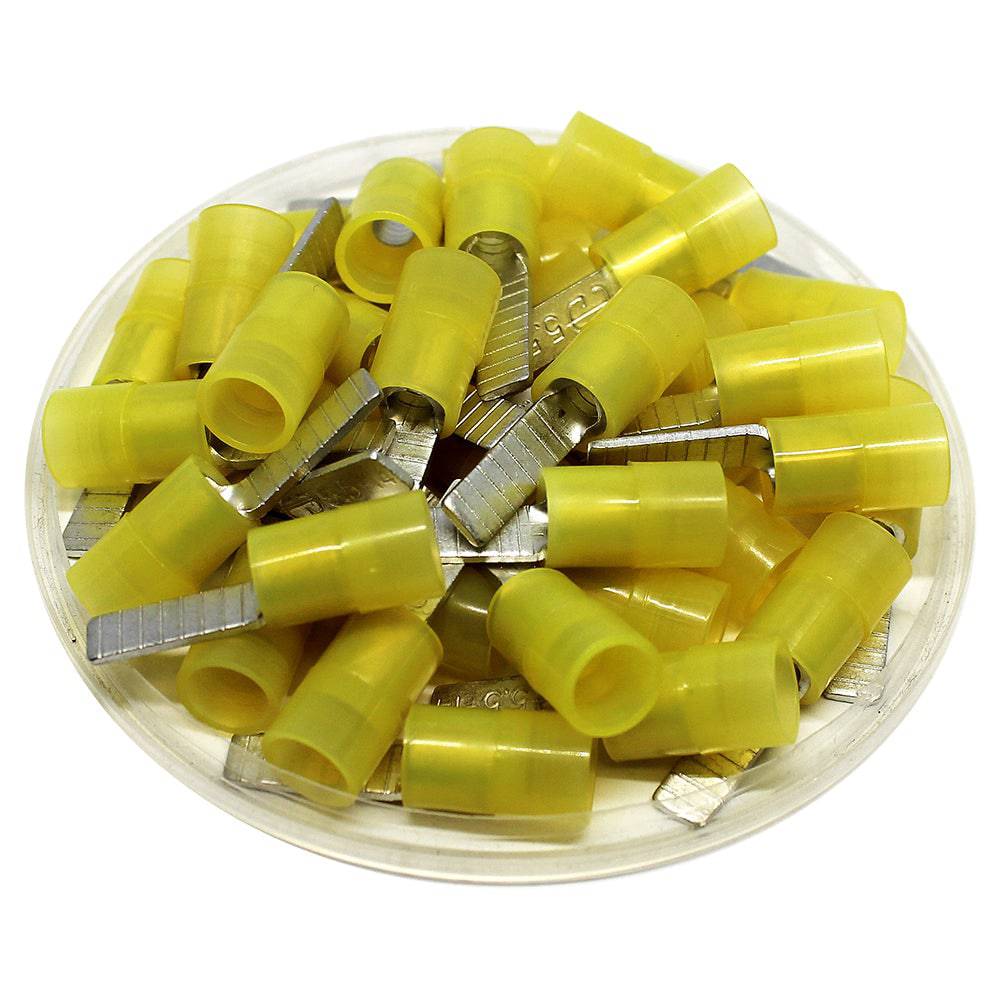

Product image 1
HomeStore

DBNYB5-14 - Nylon Insulated Flat Blade Terminal - 12-10AWG

DBNYB5-14 - Nylon Insulated Flat Blade Terminal - 12-10AWG

A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:
  • Timers
  • Motors
  • Valves
  • Relays
  • Mechanical Switches
  • Wire to Wire Harnesses


    • Dimensions & Features:

    Wire Range: 12-10AWG
    Insulation: Nylon
    Color: Yellow
    Type: Butted Seam
    Max Electrical Rating: 105oC
    Max Electrical Voltage: 600 Volts
    Max Electrical Current: 50AMP
    T: 1.0mm (0.04")
    L: 27.0mm (1.10")
    F: 14.0mm (0.55")
    E: 13.0mm (0.51")
    W: 4.5mm (0.18")
    D: 6.4mm (0.25")
    D1: 3.4mm (0.13")
    UL Recognized: Yes
    RoHS Compliant: Yes
    CE Certified: Yes

    Product Drawing:


    Cross References

    Cross Reference Parts:
    None

    Documents

    Click to view product spec sheet:

    Videos

    Check out our YouTube channel!

    $3.95

    Original: $13.16

    -70%
    DBNYB5-14 - Nylon Insulated Flat Blade Terminal - 12-10AWG—

    $13.16

    $3.95
