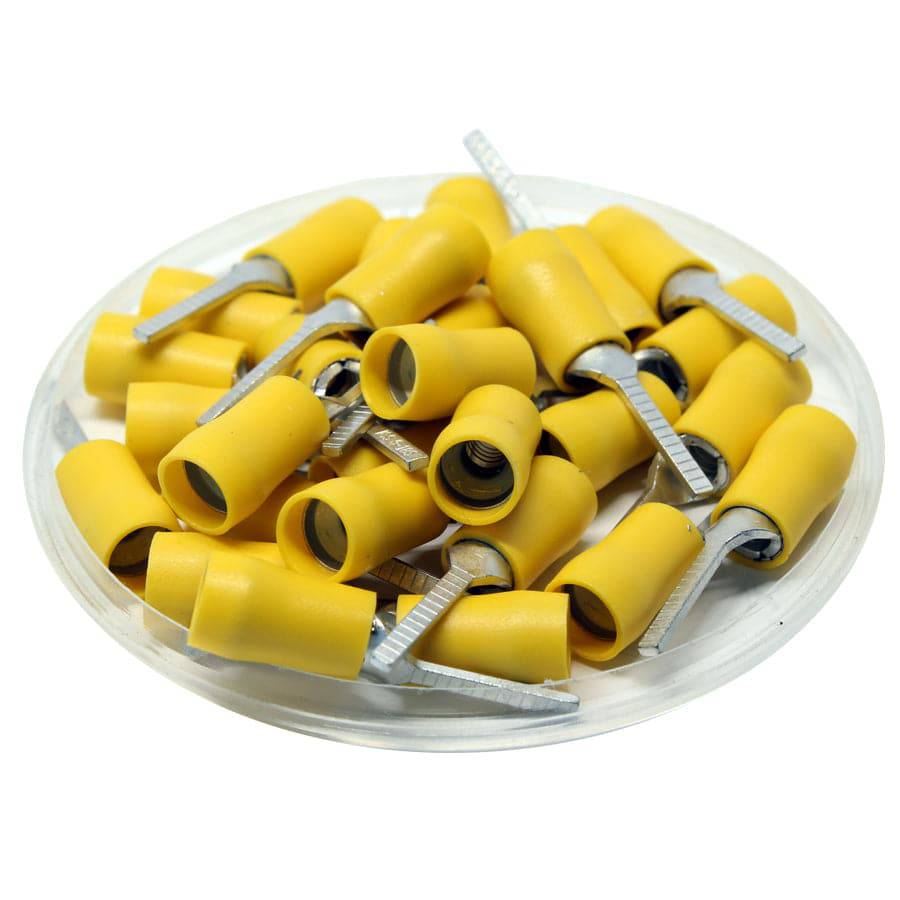

DBDS5-18 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 12-10 AWG - Yellow

DBDS5-18 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 12-10 AWG - Yellow

A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 12-10AWG
Terminal Material: Tin-Plated Copper
Insualtion Material: Vinyl
Color: Yellow
Maximum Rating: 600 Volts - 105oC
Max Electrical Rating: 50AMP
T: 1.0mm (0.03")
L: 31.0mm (1.22")
F: 18.0mm (0.71")
E: 13.0mm (0.51")
W: 2.0mm (0.08")
D: 6.4mm (0.25")
D1: 3.4mm (0.13")
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

$8.41

Original: $28.04

-70%
DBDS5-18 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 12-10 AWG - Yellow—

$28.04

$8.41
