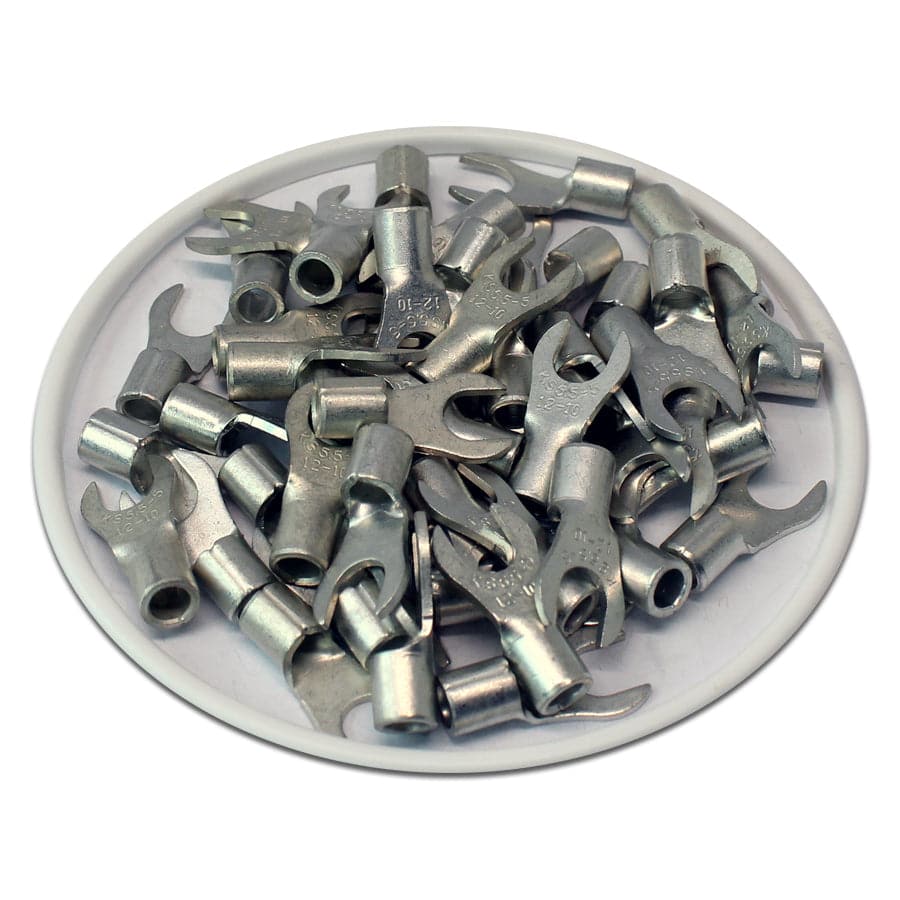

12-10 AWG Non Insulated Fork Terminals, #10 Stud, UL Approved, 50 Pieces - ANB5-5
NON INSULATED FORK TERMINALS
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #10 Stud |
| D2: | 5.3mm (0.21") |
| W: | 9.5mm (0.37") |
| F: | 9.1mm (0.36") |
| L: | 18.6mm (0.73") |
| E: | 6.0mm (0.24") |
| D: | 5.6mm (0.22") |
| D1: | 3.4mm (0.13") |
| T: | 1.0mm (0.04") |
| Material: | Tin Plated Copper |
| Seam: | Brazed |
| Electrical Rating: | 105°C - 600 Volts |
| Electrical Current: | 50 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
